Sensor Rfid Labels

Smart Tracking and Real-Time Data Control with RFID Sensor Tags

RFID sensor tags usher in a new era in product and process management by enabling not only identification but also the monitoring of environmental data such as temperature, humidity, impact, movement, and location.

These smart labels enable the instant collection of critical data, particularly in the pharmaceutical, food, logistics, manufacturing, and energy sectors. They offer superior advantages in cold chain monitoring, product safety, and the control of sensitive processes.

At Egen Barkod Etiket, the RFID sensor tag solutions we offer:

  • Real-time data tracking,
  • Prevent risks with warning systems,
  • Automatic reporting and traceability,
  • Increase operational efficiency.

Go beyond traditional tracking systems and propel your business into the future with smart, reliable, and precise solutions. Don’t just track, manage data!

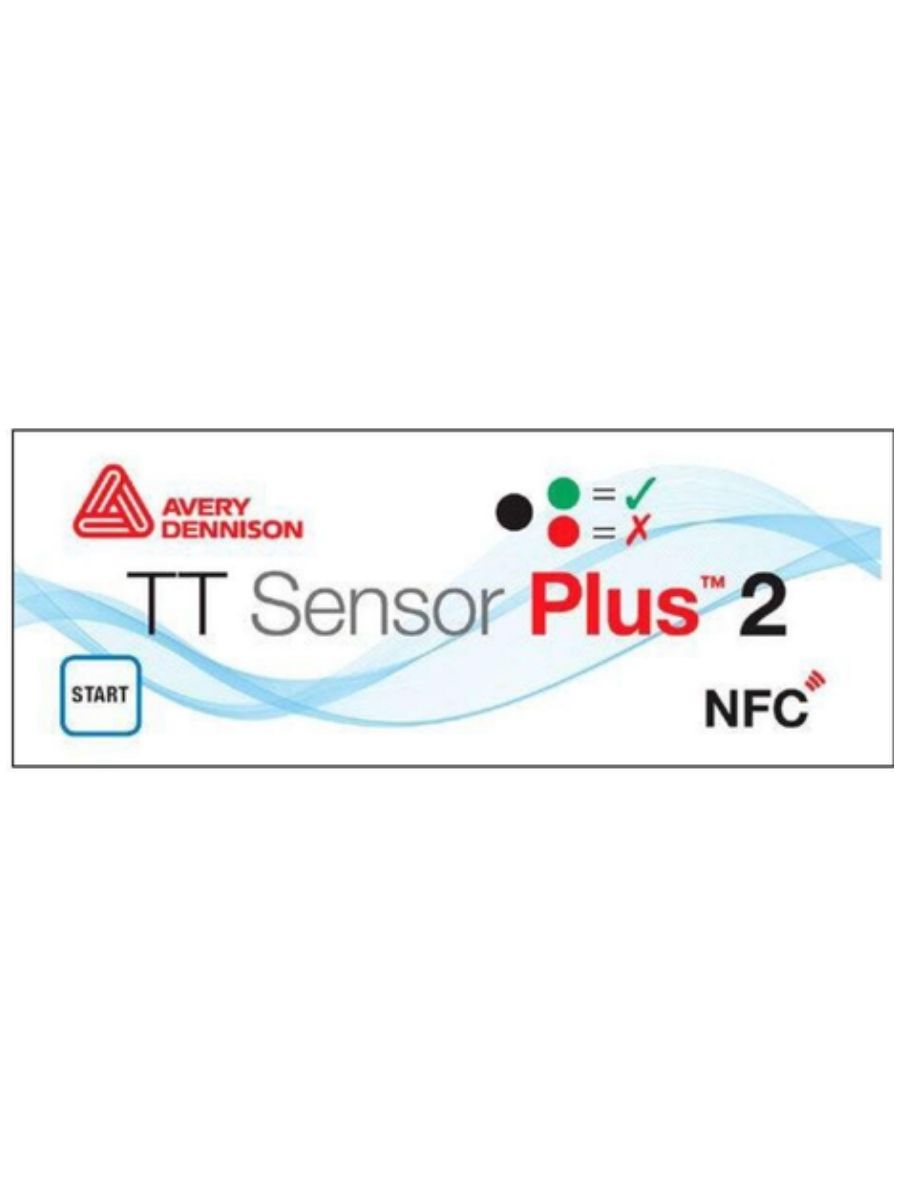

AD TT Sensor Plus™ 2

Technical Specifications:

  • Chip: NXP NHS3100
  • Frequency Band: NFC 13.56 MHz
  • User Memory: 12 KBytes [Flash] for logging data
  • Total Thickness : 3.5 mm / 0.14 in
  • Cutting Dimension: 68 x 26 x 3.5 mm / 2.68 x 1.02 x 0.14 in
  • RoHS EU Directive 2011/65/EC and Directive (EU) 2015/863
  • REACH Regulation (EC) No. 1907/2006
  • International Standard: ISO 14443
  • Certificates: Certificate of calibration (T° accuracy) / IATA and FDA part 11 statements
  • Operating Temperature: -30°C to 60°C / -22°F to 140°F

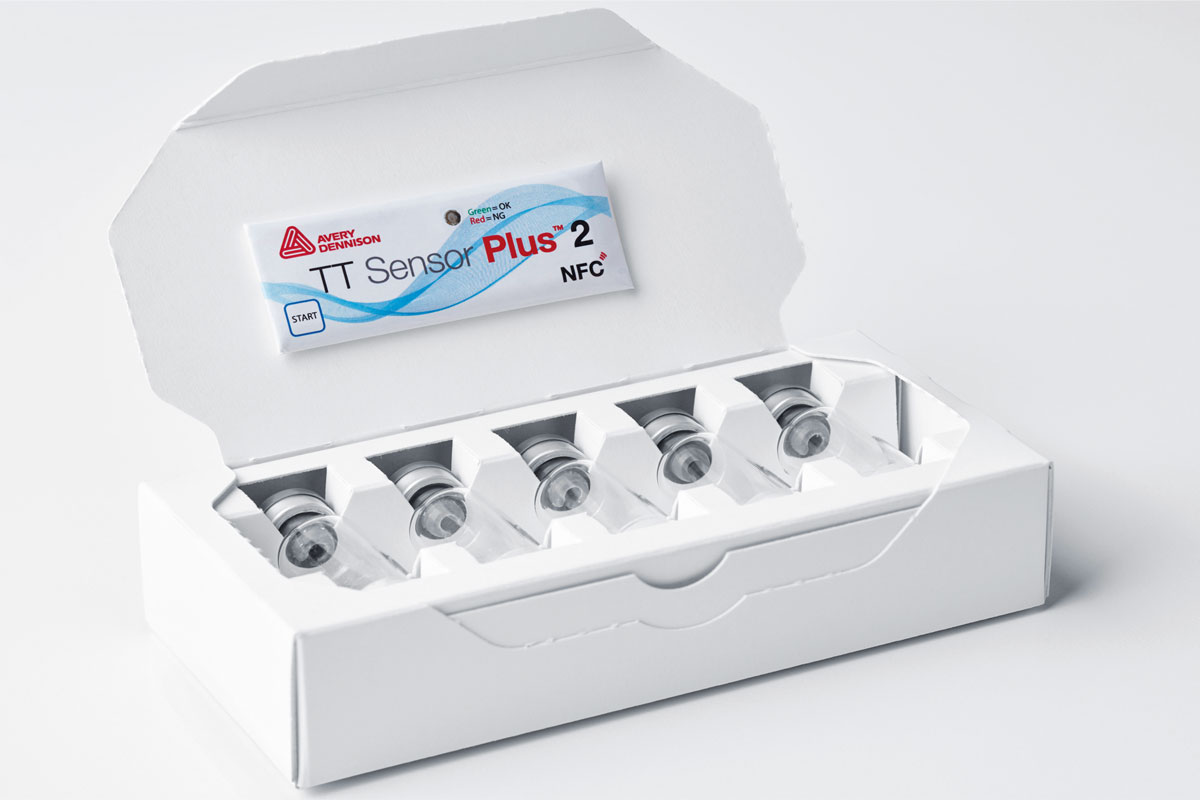

The Next Generation of Confidence in Cold Chain Monitoring: AD TT Sensor Plus 2

The AD TT Sensor Plus 2 simplifies temperature monitoring under challenging cold chain conditions. Its compact size and low cost make it the perfect solution for medical products and food packaging. This NFC-based temperature data logger, capable of precisely measuring and recording ambient temperature for up to three years, fully documents the conditions products are exposed to throughout the supply chain.

Thanks to wireless NFC technology, temperature data on the label can be easily read with a USB NFC reader or NFC-enabled smartphone. Integrated with TTScan (PC) and TTApp (mobile) applications, the system also enables the analysis of historical data through the TTNet database.

  • Programmable temperature ranges and alarm thresholds
  • Records up to 100,000 temperature events
  • Time-stamped monitoring with UTC time
  • Highly secure data protection and authorization system

The AD TT Sensor Plus 2 not only measures temperature but also ensures product safety, quality control, and legal compliance.

Keep every link of your supply chain under control with Egen Barkod Etiket.

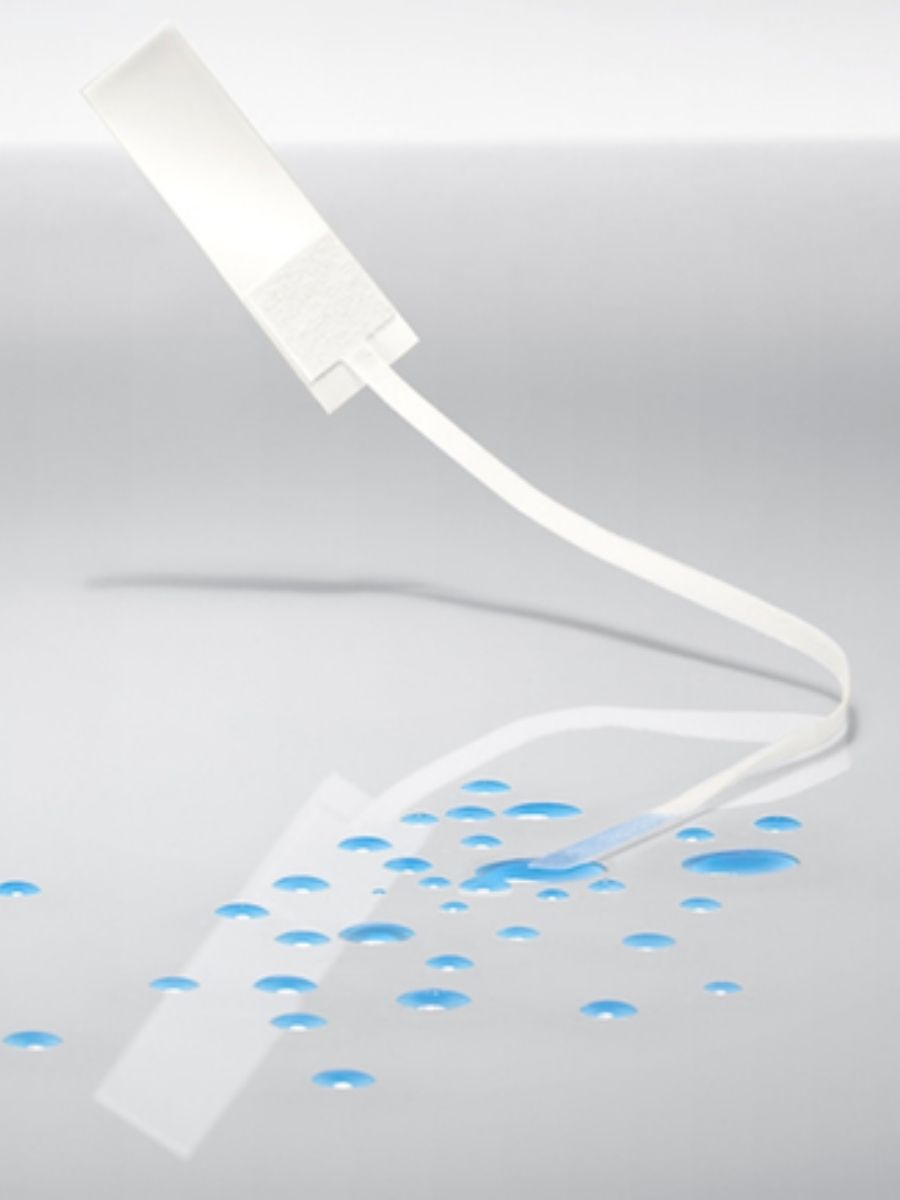

AD Sensor Tadpole

Technical Specifications:

  • Chip: Axzon Magnus S2
  • Frequency Band: UHF 860 – 960 MHz
  • User Memory 128-bit and 144-bit
  • Antenna Size: 18 x 81.15 mm / 0.71 x 3.19 in
  • Cutout Size: 21.5 x 84 mm / 0.85 x 3.31 in
  • RoHS EU Directive 2011/65/EC and Directive (EU) 2015/863
  • REACH Regulation (EC) No. 1907/2006
  • International Standard ISO 18000-6C, EPC Class 1 Gen 2
  • Operating Temperature -40 °C to 85 °C / -40 °F to 185 °F

Immediately Detect Water Leakage: Smart Moisture Monitoring with the Sensor Tadpole

Sensor Tadpole is a state-of-the-art passive UHF sensor tag developed by Smartrac and specifically designed for water leakage and moisture detection. It was developed to detect water exposure on parts and components at an early stage, particularly during quality control processes.

Equipped with the Axzon Magnus®S2 integrated circuit, the Sensor Tadpole detects changes in humidity in its environment with high sensitivity. Its specially designed antenna detects environmental humidity data as impedance changes, converts this information into sensor codes, and transmits it to the user.

Key Features:

  • Optimized for water leak and moisture detection
  • Passive operation: No batteries required, low cost, and long-lasting
  • Small, thin, and flexible design: Can be used on challenging areas, including metal surfaces
  • Wide-area water detection with optional paper tail extension
  • Easy integration with UHF RFID-compatible infrastructures
  • Customizable delivery with different tail length options

Sensor Tadpole offers a safe and effective solution in any environment where moisture poses a risk, especially in automotive, electronics, white goods, and manufacturing facilities.

Make hidden risks visible with Egen Barcode Labels and protect your products and processes.

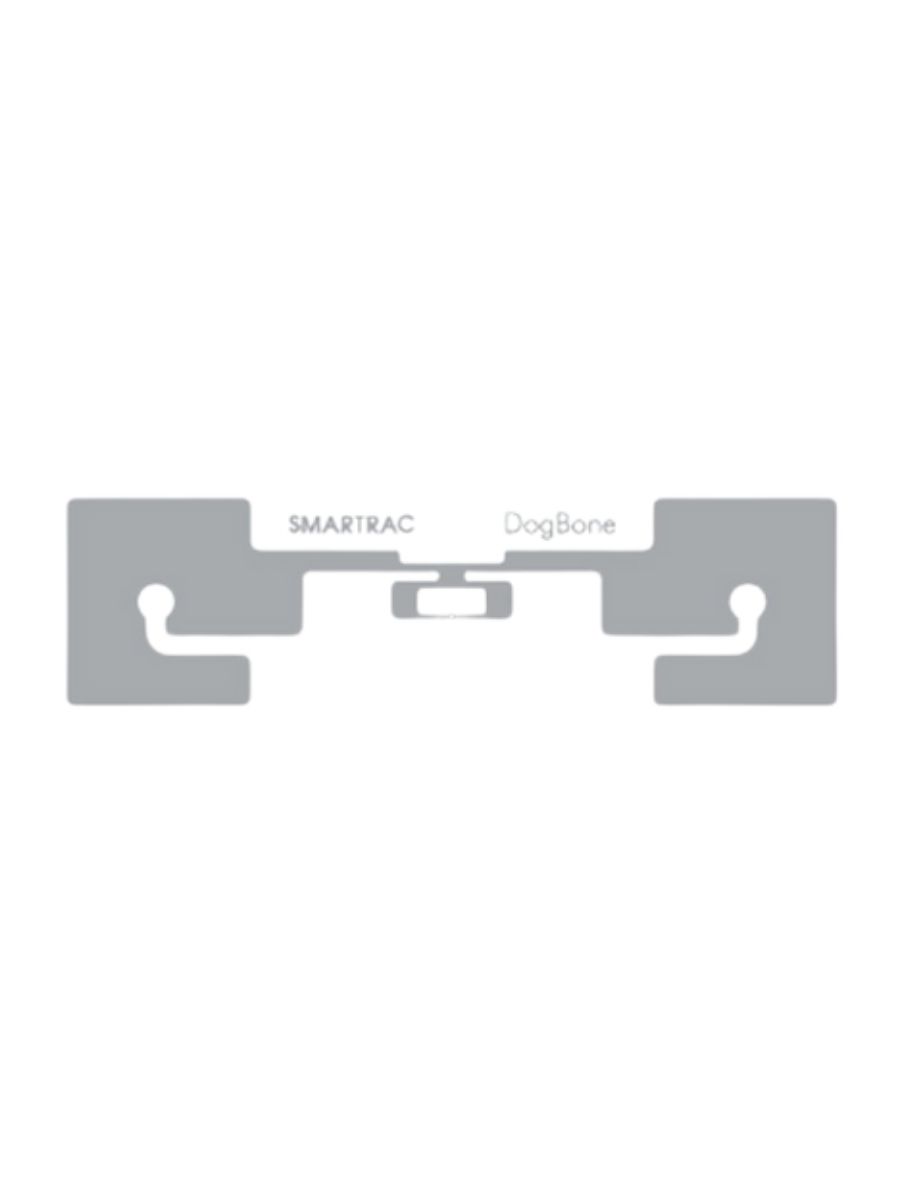

AD Temperature Sensor Dogbone®

Technical Specifications:

    • Chip: Axzon Magnus S3
    • Frequency Band: UHF 860 – 960 MHz
    • User Memory 128-bit and 128-bit
    • Antenna Size: 89 x 24 mm / 3.50 x 0.90 in
    • Cutout Size: 97 x 27 mm / 3.82 x 1.06 in
    • RoHS EU Directive 2011/65/EC and Directive (EU) 2015/863
    • REACH Regulation (EC) No. 1907/2006
    • International Standard ISO 18000-6C, EPC Class 1 Gen 2
    • Operating Temperature -40°C to 85°C / -40°F to 185°F

Smart Temperature Monitoring with the AD Dogbone® Temperature Sensor

The AD Dogbone® Temperature Sensor is a passive UHF RFID sensor inlay developed for demanding environments requiring temperature monitoring. It is ideal for precisely monitoring critical temperature conditions in pharmaceutical, food, and industrial applications, particularly in cold chain management.

Equipped with the Axzon Magnus® S3 chip, this advanced sensor inlay can wirelessly and non-contactly measure ambient temperature and, optionally, humidity levels. It provides maximum measurement accuracy with single- or dual-point calibration options. It can also detect the sensor’s power status by reading the on-chip RSSI (signal strength) values.

Key Features:

      • Passive system: No batteries required, low cost, and long lifespan
      • Precise temperature sensing: User-specific calibration options
      • UHF RFID compatible: Easy integration with wireless communication
      • Reliable data with high-performance Magnus®S3 chip
      • Easy analysis of temperature data with software support

The AD Temperature Sensor Dogbone® provides reliable temperature control even in challenging conditions with its compact design and advanced technology.

Increase your temperature accuracy and ensure product quality with the AD Temperature Sensor Dogbone®.

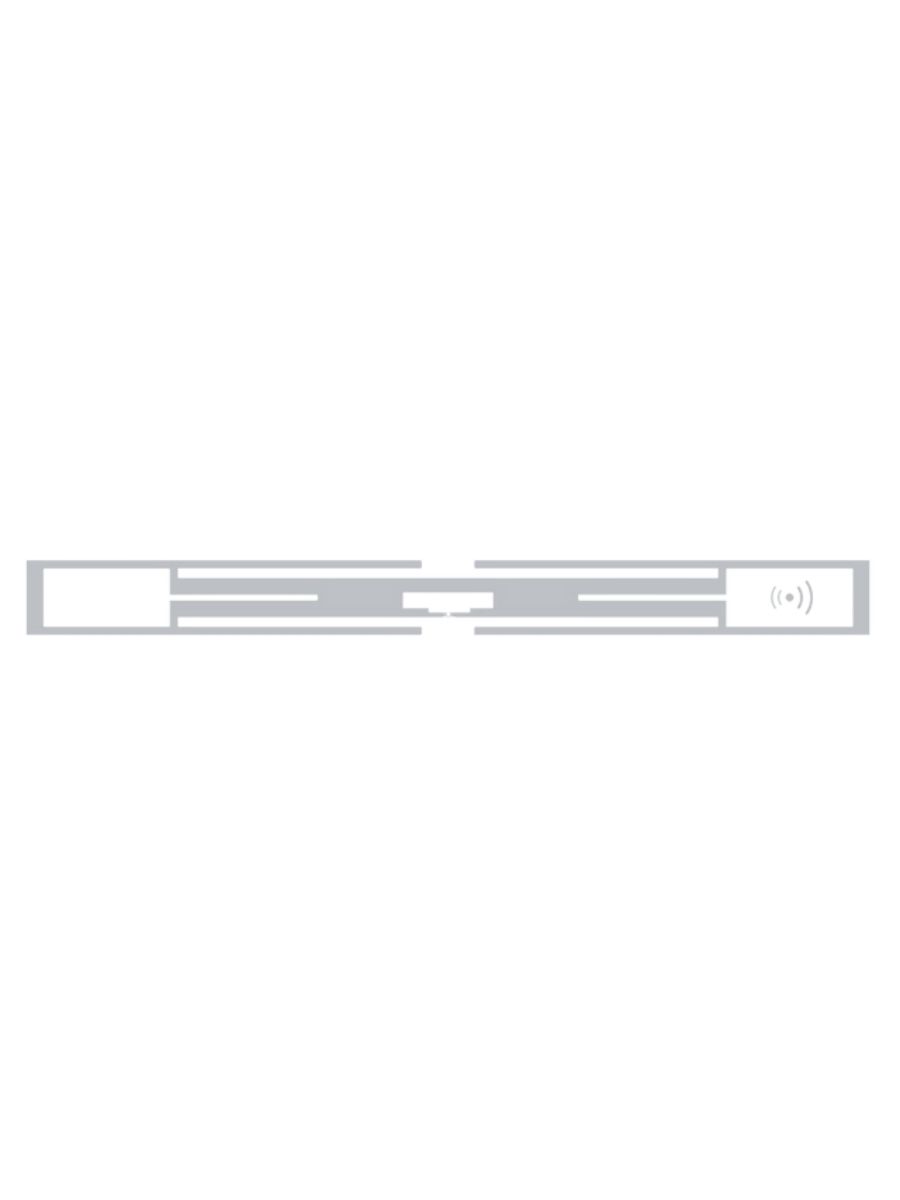

AD Smartrac Sensor Patch Magnus®S2

Technical Specifications:

  • Chip: RFMicron Magnus®S2
  • Frequency Band: UHF 860 – 960 MHz
  • User Memory 128 bit, User 144 bit, TID 64 bit
  • Antenna Size: 102 x 8.62 mm / a x 0.4 in
  • Cutout Size: 105 x 11.62 mm 4.1 x 0.5 in
  • RoHS EU Directive 2011/65/EC and Directive (EU) 2015/863
  • REACH Regulation (EC) No. 1907/2006
  • International Standard ISO/IEC 18000-63 Type C
  • Operating Temperature -40 °C to 85 °C / -40 °F to 185 °F

Avery Dennison Smartrac Sensor Patch RFID Inlay for Smart Humidity Monitoring

The Avery Dennison Smartrac Sensor Patch revolutionizes passive RFID sensor inlay solutions. It is designed specifically for monitoring humidity levels in healthcare sectors such as elder care, long-term medical care, and child care.

Equipped with RFMicron’s Magnus®S2 integrated circuit, this UHF RFID sensor inlay is optimized to accurately detect urine levels when applied to the outside of the diaper. Its special antenna design detects environmental humidity by converting it into an impedance change, converts this data into sensor code, and transmits it wirelessly to readers via the standard UHF Gen2 protocol.

Key Features:

  • Passive UHF RFID inlay: No batteries, no maintenance required
  • Precise moisture detection: Disposable sensor solution
  • Prevents direct contact with skin, preventing irritation
  • Can work on various fabric, cellulose, and nonwoven surfaces
  • Easily integrated into industrial diaper production lines
  • Available in both wet and dry inlay formats
  • Complies with all industry standards and quality controls

The Smartrac Sensor Patch offers high cost-effectiveness and reliable performance in applications where active or semi-active sensors cannot be used.

Combine comfort, hygiene, and technology in your medical monitoring solutions with the Egen Barkod Etiket.
