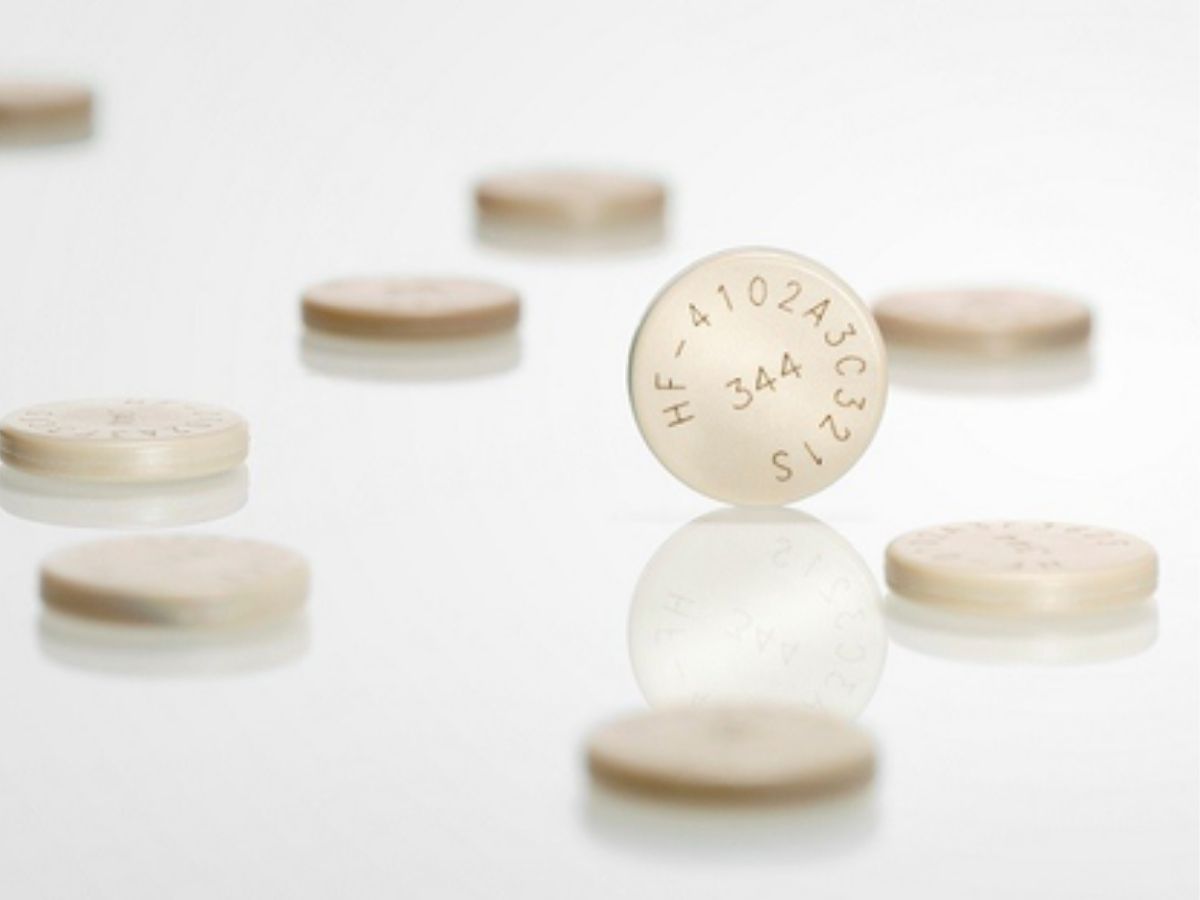

Hard Tag RFID Tags

Hard Tag RFID Tags — The New Standard in Durability and Reliability

At Egen Barkod, we offer Hard Tag RFID tags designed to meet your specific needs. Manufactured in accordance with LF, HF, and UHF frequency standards, these tags provide superior performance and durability in harsh environments and on hard surfaces.

The key features of our Hard Tag labels:

  • High durability: Reliable protection against dust, chemicals, mechanical stress, and temporary immersion in water.
  • On-metal application: Specially designed for trouble-free use on metal surfaces.
  • Various special functions: Various features such as high temperature resistance, humidity, and heat detection.
  • Wide frequency support: Flexible use with LF, HF, and UHF frequency standards.

Our Hard Tag RFID labels are the ideal solution for demanding applications and harsh environmental conditions in industrial settings, as well as logistics and supply chain applications. For those seeking durability, longevity, and precise data tracking, Egen Barkod Hard Tag labels are a reliable choice.

AD Maxdura® Tire Rfid Tag

Technical Specifications:

    • Chip: Impinj M730
    • Frequency Band: UHF 860 – 960 MHz Typical min. 4 meters vulcanized in dash, depending on embedding position
    • User Memory 128-bit
    • Hard Tag Dimensions : 47.5 x 1.5 mm (+/- 0.5 mm) / 1.87 x 0.059 in
    • Thickness Diameter : 1.5 mm (+/- 0.2 mm) / 0.059 in
    • RoHS EU Directive 2011/65/EC and Directive (EU) 2015/863
    • REACH Regulation (EC) No. 1907/2006
    • International Standard: Compliant to GS1 Class 1, Gen 2 and ISO
      18000-6C
    • Operating Temperature : -40 °C to 85 °C / -40 °F to 185 °F
    • Storage Temperature -40 °C to 120 °C / -40 °F to 248°F Typical storage temp. 25°C / 77°F
    • Cold Temperature Test: -40°C (40°F), 24 hours
    • High Temperature Test: 120°C (248°F), 24 hours
    • Certificates ISO 9001 / ISO 14001 / IATF 16949 / ISO 18000-6C / ISO 20909 / ISO 20910 / ISO 20911 / ISO 20912

Track Your Tire’s Life Cycle from End to End with the AD Maxdura® RFID Tire Tag

The AD Maxdura® RFID Tire Tag is a UHF RFID inlay solution that is integrated into the tire mold before production and permanently embedded in the tire casing during vulcanization. This embedded structure ensures the tag remains in place throughout the tire’s life, ensuring traceability. This durable RFID inlay is the ideal solution for tracking the entire tire lifecycle, from production to recycling. It digitizes processes such as fleet management, inventory tracking, maintenance history, and environmental audits, providing operational efficiency.

Technical Advantages:

      • Extremely robust construction: Resistant to harsh road and production conditions
      • Automated overmolding and resistance welding ensure robust antenna connection
      • Compact custom IC housing: Uniform fit with tire components
      • Small-size design with lead frame technology
      • Customer-specific antenna configuration: Optimized for different rubber compounds
      • Lifetime traceability: Track from production to dismantling with a single tag

The AD Maxdura® Tire Label eliminates the need for active hardware with passive UHF RFID technology, operates without requiring power, and contributes to sustainability goals.

Durable and smart RFID solutions with Egen Barkod Label

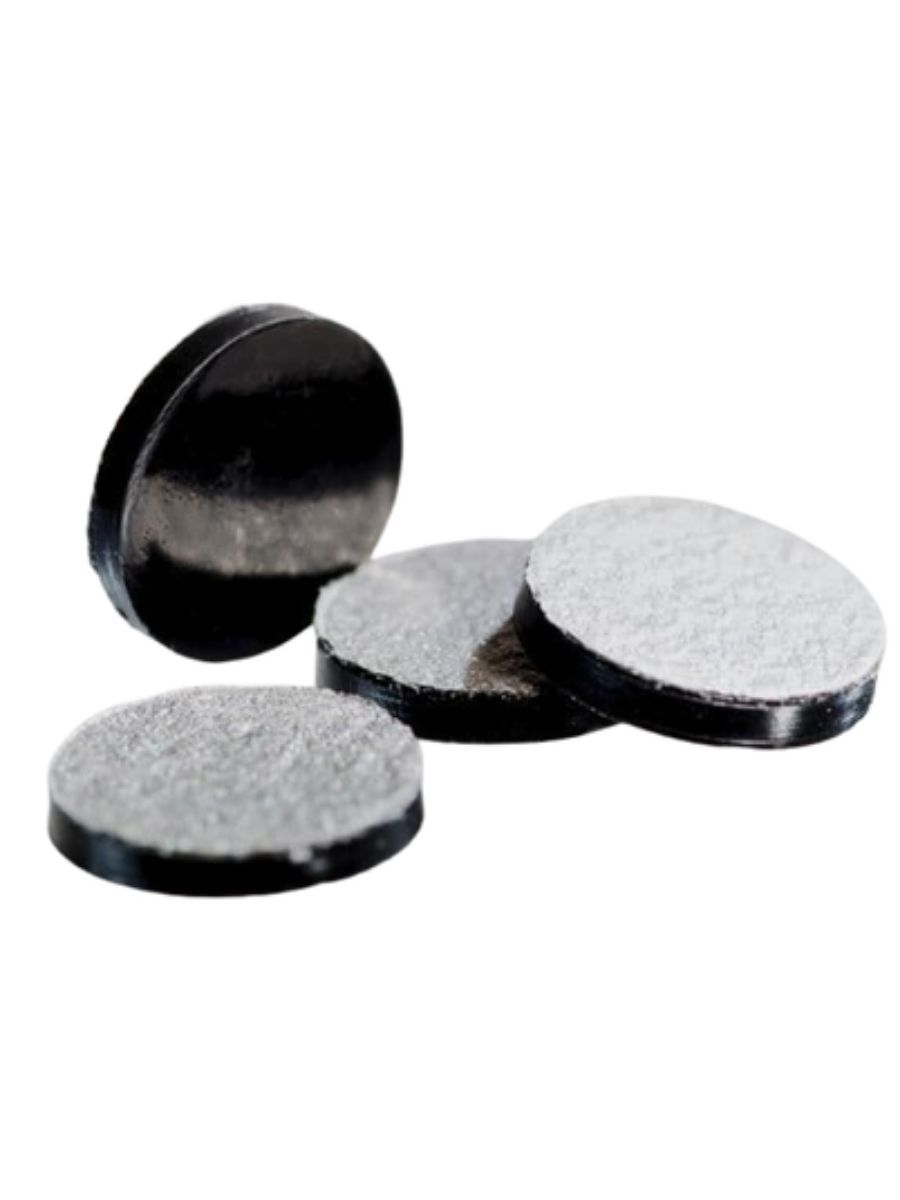

Maxdura® Mini Rfid Tag

Technical Specifications:

  • Chip: NXP ICODE SLIX
  • Frequency Band: HF 13.56 MHz
  • User Memory 1000-bit
  • Hard Tag Dimensions : Ø 6 mm / 0.24 in
  • Thickness : 1 mm / 0.04 in
  • RoHS EU Directive 2011/65/EC and Directive (EU) 2015/863
  • REACH Regulation (EC) No. 1907/2006
  • International Standard: ISO 18000-3 Mode 3 ISO 15693
  • Operating Temperature: 0°C to 50°C / 32°F to 122°F
  • Storage Temperature: -40°C to 90°C / -40°F to 176°F

Ideal for Small-Item Labeling

At Egen Barkod Etiket, we offer our AD Bling M730 inlays and labels specifically for jewelry and cosmetics applications. Our products are characterized by their excellent performance.

The small (22 mm / 0.9 inch) form factor of our AD Bling M730 inlays and labels allows them to be easily converted into small-sized hang tags for jewelry labels or conveniently applied to small cosmetic products. The AD Bling M730 is equipped with the Impinj M730 chip, which features automatic adjustment, ensuring maximum efficiency even in rapidly changing environments.

These products offer a 128-bit EPC, a 48-bit serial number, and a 96-bit serialized TID, and are 100% performance-tested. Our inlays and labels are available in dry, wet, and label formats.

Like all Egen Barkod Etiket inlays and labels, the AD Bling M730 complies with ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management standards. They offer reliable, cutting-edge products that meet a variety of application needs, particularly in retail environments.

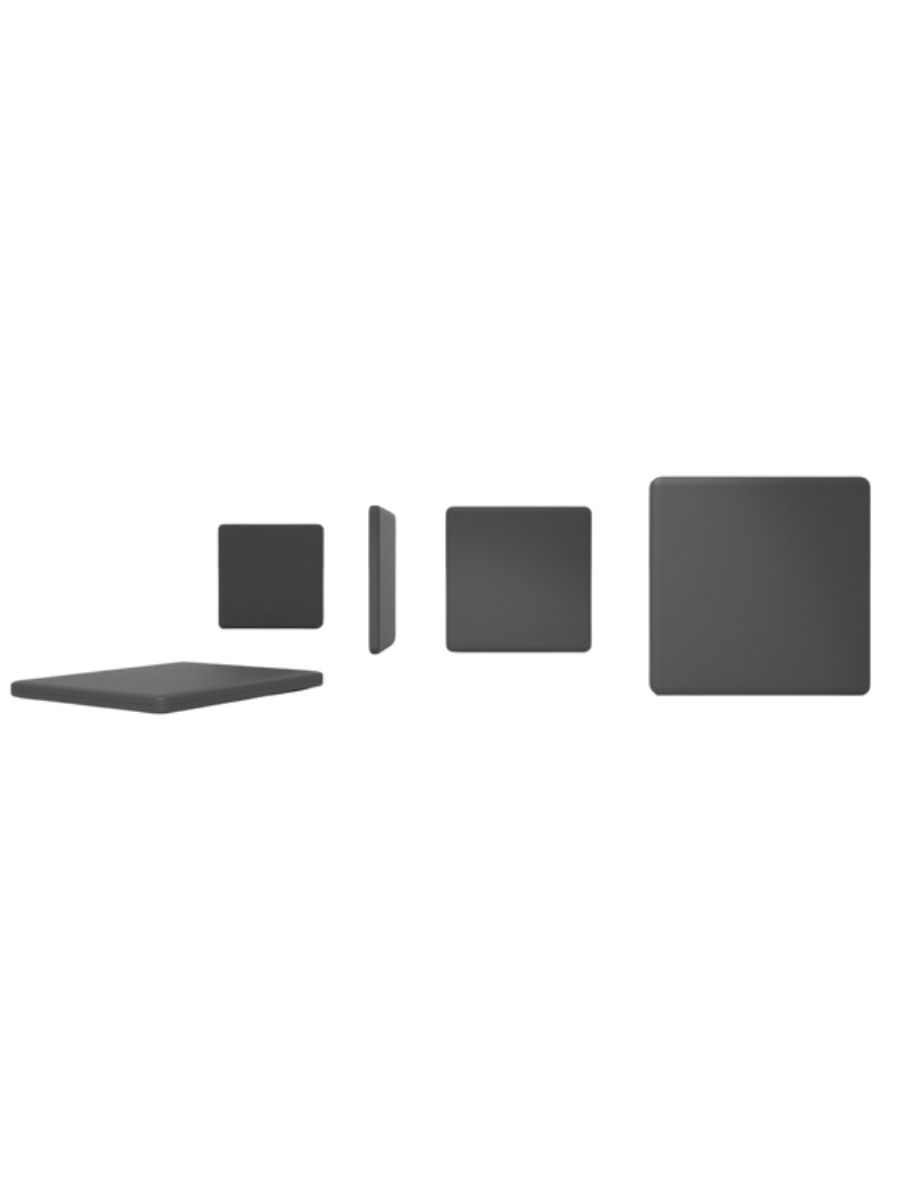

AD Maxdura® Case Rfid Tag

Technical Specifications:

  • Chip: NXP ICODE SLIX
  • Frequency Band: HF 13.56 MHz
  • User Memory 1024-bit
  • Hard Tag Dimensions : 51 x 51 mm / 2.01 x 2.01 in
  • Thickness : 6.50 mm / 0.26 in
  • RoHS EU Directive 2011/65/EC and Directive (EU) 2015/863
  • REACH Regulation (EC) No. 1907/2006
  • International Standard: ISO 18000-3 Mode 3 ISO 18000-6C, EPC Class 1 Gen 2 ISO 15693
  • Operating Temperature : -40 °C to 85 °C / -40 °F to 185 °F
  • Storage Temperature : -55 °C to 185 °C / -67 °F to 365 °F
  • Extreme Temperature
    60 mins at 200 °C / 392 °F, 1000 cycles
    45 mins at 220 °C / 428 °F, 1000 cycles
    30 mins at 240 °C / 464 °F, 1000 cycles

AD Maxdura® Case – High Temperature A Robust RFID Solution for Harsh Industrial Conditions

The AD Maxdura® Case, offered by Egen Barkod, is designed to maximize RFID performance in industrial applications characterized by high temperatures and harsh environmental conditions. It offers superior protection and reliability, particularly in production environments where heat and chemical exposure are intense, such as coating lines.

Made of PPS (Polyphenylene Sulfide), the AD Maxdura® Case:

  • 200°C for 60 minutes
  • 220°C for 45 minutes
  • 240°C for 30 minutes

It also offers high resistance to chemicals such as acetone, sodium carbonate, salt water, fresh water, acetic acid, and ethyl alcohol. Vibration and impact resistance have been tested in accordance with IEC 86.2.6 and IEC 68.2.29 standards.

Advantages:

  • Long-lasting use thanks to high temperature and chemical resistance
  • Highly accurate data tracking with reliable RFID reading range
  • Increased efficiency and enhanced traceability in production processes
  • Ideal solution for harsh industrial environments

The Egen Barkod AD Maxdura® Case provides optimized tracking of goods, parts, and production processes. It enables RFID technology to operate seamlessly even in harsh environments, taking your production efficiency to the next level.

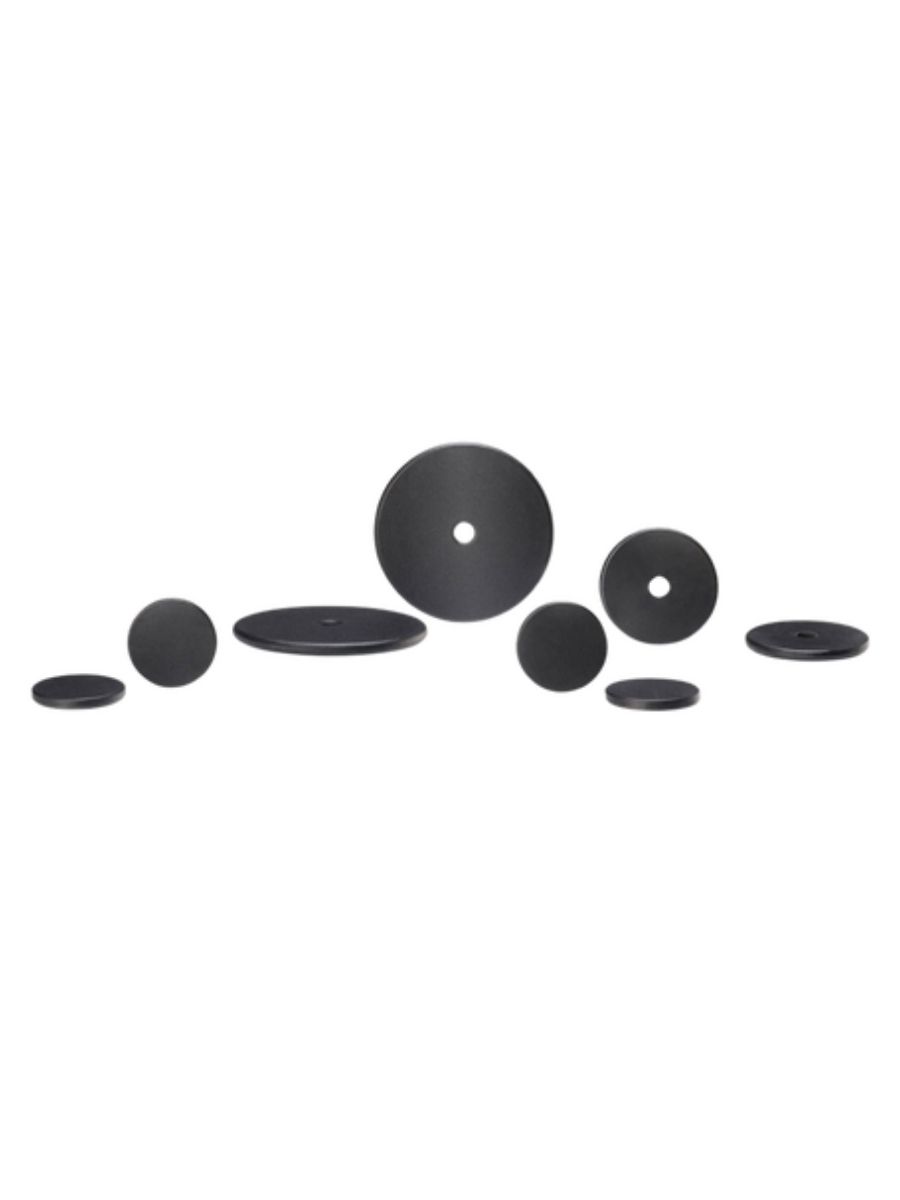

Maxdura® Disc Rfid Tag

Technical Specifications:

  • Chip: NXP ICODE SLIX / SLIX 2 / Fujitsu FRAM 2k rev.C
  • Frequency Band: HF 13.56 MHz / LF 125 kHz
  • User Memory 1000-bit
  • Hard Tag Dimensions: Ø 20 mm / 0.78 in – Ø 30 mm / 1.18 in – Ø 50 mm / 1.97 in
  • Thickness: 3 mm 0.12 in
  • RoHS EU Directive 2011/65/EC and Directive (EU) 2015/863
  • REACH Regulation (EC) No. 1907/2006
  • International Standard: ISO 18000-3 Mode 3 ISO 15693
  • Operating Temperature: -40 °C to 85 °C / -40 °F to 185 °F
  • Storage Temperature: -40 °C to 10 °C -40 °F to 212 °F

Maxdura® Disc – The Reliable RFID Solution for Harsh Conditions

Maxdura® Disc is a robust and durable RFID solution specifically designed for harsh industrial environments. Its polyamide and fiberglass-reinforced structure offers high durability, while its compact form allows for seamless installation even in confined spaces.

Maxdura® Disc is particularly suitable for:

  • Parts regularly exposed to high temperatures or mechanical stress,
  • Equipment cleaned with hot water,
  • Components used in heavy-duty industrial environments.

Models equipped with the Fujitsu FRAM IC can also be safely used in various medical applications thanks to their large memory capacity and high resistance to gamma radiation. Thanks to the specially developed thermoplastic material and molding technology, they provide superior resistance to:

  • Prolonged immersion in water,
  • Chemical effects,
  • High temperatures.

Furthermore, thanks to its anti-collision feature, it allows multiple RFID tags to be read simultaneously, streamlining production processes and simplifying management.

Maxdura® Disc is a smart and durable solution for reliable identification, tracking and data management in harsh environmental conditions.

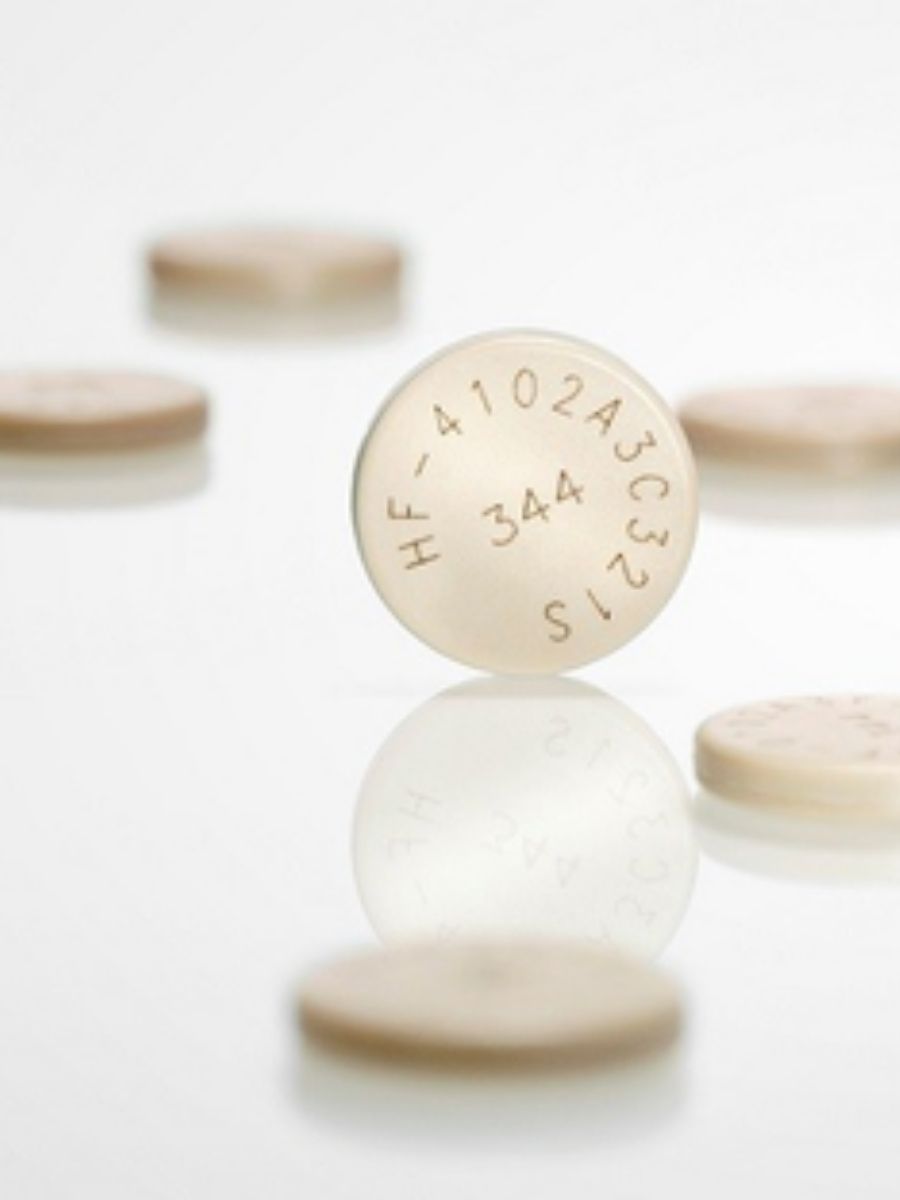

Maxdura® Laundry Rfid Tag

Technical Specifications:

  • Chip: EM 4033 DFN
  • Frequency Band: HF 13.56 MHz
  • User Memory: Available
  • Hard Tag Dimensions : Ø 16 mm / 0.63 in
  • Thickness: 3 mm 0.12 in
  • RoHS EU Directive 2011/65/EC and Directive (EU) 2015/863
  • REACH Regulation (EC) No. 1907/2006
  • International Standard: ISO 15693, ISO 18000-3
  • Operating Temperature: -40 °C to 85 °C / -40 °F to 185 °F
  • Storage Temperature: 140 °C for 12 min, max 220 °C / 3.5 bar for up to 1 min

Maxdura® Laundry – Small Size, Big Performance

Maxdura® Laundry is specifically designed for the challenging environmental conditions of the laundry management industry. Despite its small size, it delivers high performance, streamlining inventory processes in hotels, hospitals, and similar institutions, increasing operational efficiency.

This compact RFID tag simplifies garment classification and contributes to more efficient management of water and energy consumption.

Made with a robust PPS material, Maxdura® Laundry:

  • Resistant to prolonged immersion in water,
  • Resistant to high temperatures up to 200°C,
  • Resistant to pressure and various chemicals.

Thanks to its anti-collision feature, multiple tags can be easily read simultaneously, even when tagged laundry is stacked on top of each other. Its small form factor allows it to be invisibly sewn onto bedding, work clothes, and other textiles.

Offering a superior reading range of up to 70 mm in the HF frequency band, Maxdura® Laundry is also compliant with all industry standards (ISO 18000-3, ISO 15693). Having undergone comprehensive quality tests for temperature, humidity, and pressure resistance, it is poised to become the new benchmark for RFID technology in wet industry segments.

Eartrace® Male Flag Rfid Tag

Technical Specifications:

  • Chip: Impinj Monza R6-P
  • Frequency Band: UHF 860 – 960 MHz
  • User Memory: 128-bit and 32-bit
  • Hard Tag Dimensions: 60 x 76 mm / 2.36 x 2.99 in
  • Thickness : 2 mm / 0.08 in
  • RoHS EU Directive 2011/65/EC and Directive (EU) 2015/863
  • REACH Regulation (EC) No. 1907/2006
  • Certificates: IP68 PASS 44 Broadband
  • International Standard: ISO 18000-6C, EPC Class 1 Gen 2
  • Operating Temperature: -40°C to 80°C -40°F to 176°F
  • Storage Temperature: -40°C to 80°C -40°F to 176°F (max. 1000h)

Eartrace® Male Flag – The New Standard of RFID Technology in Livestock

Innovative UHF RFID Animal Identification Ear Tag with Superior Reading Range

Eartrace® Male Flag is an innovative UHF RFID ear tag solution designed to withstand the harsh environmental conditions of the livestock industry. Its extended reading range, durable construction, and reliable data transmission take animal tracking and management to a new level.

The new Eartrace® RFID tag features an RFID chip module inductively coupled to an engraved wire antenna. This structure offers significantly higher resistance to breakage and deformation compared to traditional etched antenna designs—increasing reliability, especially in demanding usage scenarios such as daily animal mobility.

Key Features:

  • Engraved Antenna Technology: Integrated onto a TPU (thermoplastic polyurethane) carrier material using a special wire-embedding method. This structure ensures long-lasting and flexible use.
  • High-Performance Chip: The tag is equipped with the Impinj Monza R6-P chip. This chip maintains high performance in different environments with its automatic adjustment feature.
  • Extra Memory Options: Provides flexibility with advanced functions such as user memory, optional memory configurations, a “kill” function, and data access controls.
  • Extensive Reading Range: UHF RFID technology provides a reading range of up to approximately 5 meters (15 feet) under normal conditions.
  • Compact and Robust Design: Available as a 60 x 76 mm flag tag. Its robust design securely mounts to the ear tag with a pin connection.

The Egen Barkod Eartrace® Male Flag combines reliability, speed, and efficiency in animal health, identification tracking, and herd management. With the advantages of UHF RFID technology, it makes a strong contribution to the digital transformation of modern livestock farming.
